DIVIDER & DIVERGING CONVEYOR

1. General teatures & merit

- Included driven motor(2.2kW), inverter, control box and dancer arm (or Ultrasonic sensor)
- This machine does not include PLC so Expander or Paster should control this divider. (Moojin can design and make these machines self-controlled according to customer's request).
- Continuous production applicable to all kinds of Grids such as Expanded, ConCast and Punched type

2. Machine details

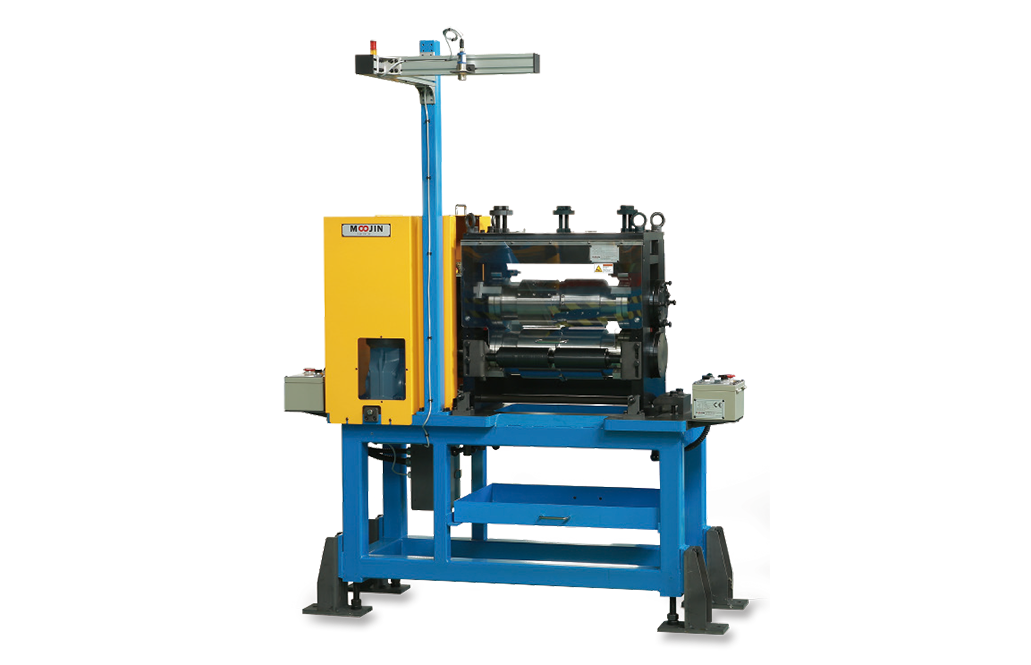

• Divider
    - Speed Time : up to 50M / Min. (Speed depends upon pasted design)
    - Applicable Plate Height : 99 ~150mm (Including the lug height)
    - Applicable Plate Width : 85 ~175mm
    - Applicable Grid Thickness : up to 3mm
    - Frame & Cover material : SB34P, SM45C, SKD11
    - Approx. size & weight : L 1,100 X W 1,500 X H 1,700mm / 850kg

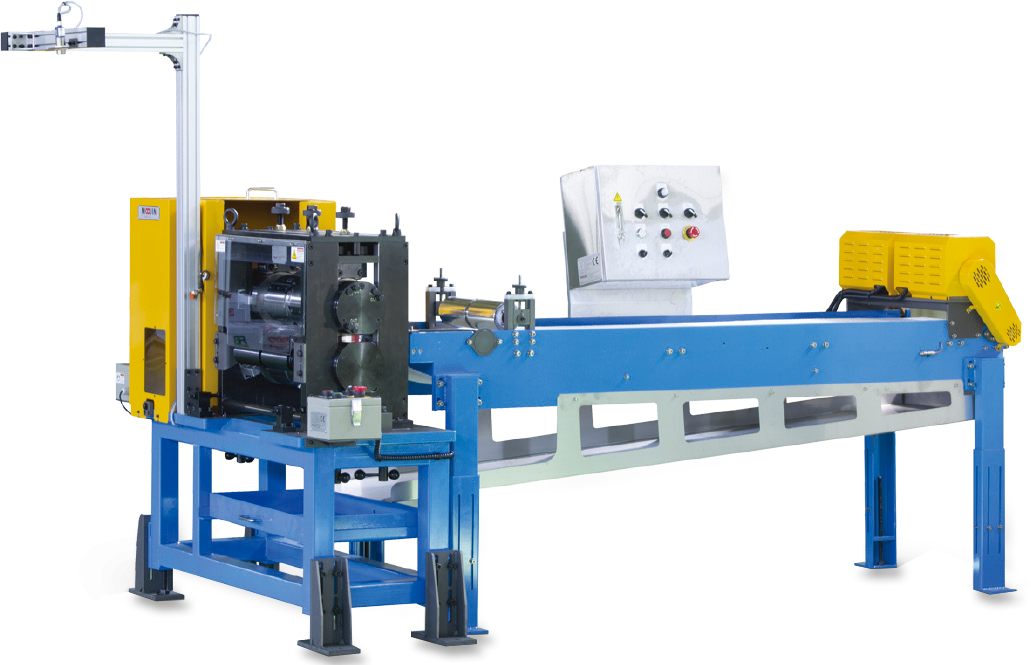

• Diverging Conveyor
    - Speed Time : up to 50M / Min.
    - Applicable Strip Size : ~ 148mm
    - Material : SS41, SM45C, GUR
    - Main Power : 1kW
    - Approx. size & weight : L2,500 X W1,300 X H1,700mm / 400kg

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
Compressed air 5 ~ 6kg / ㎠
