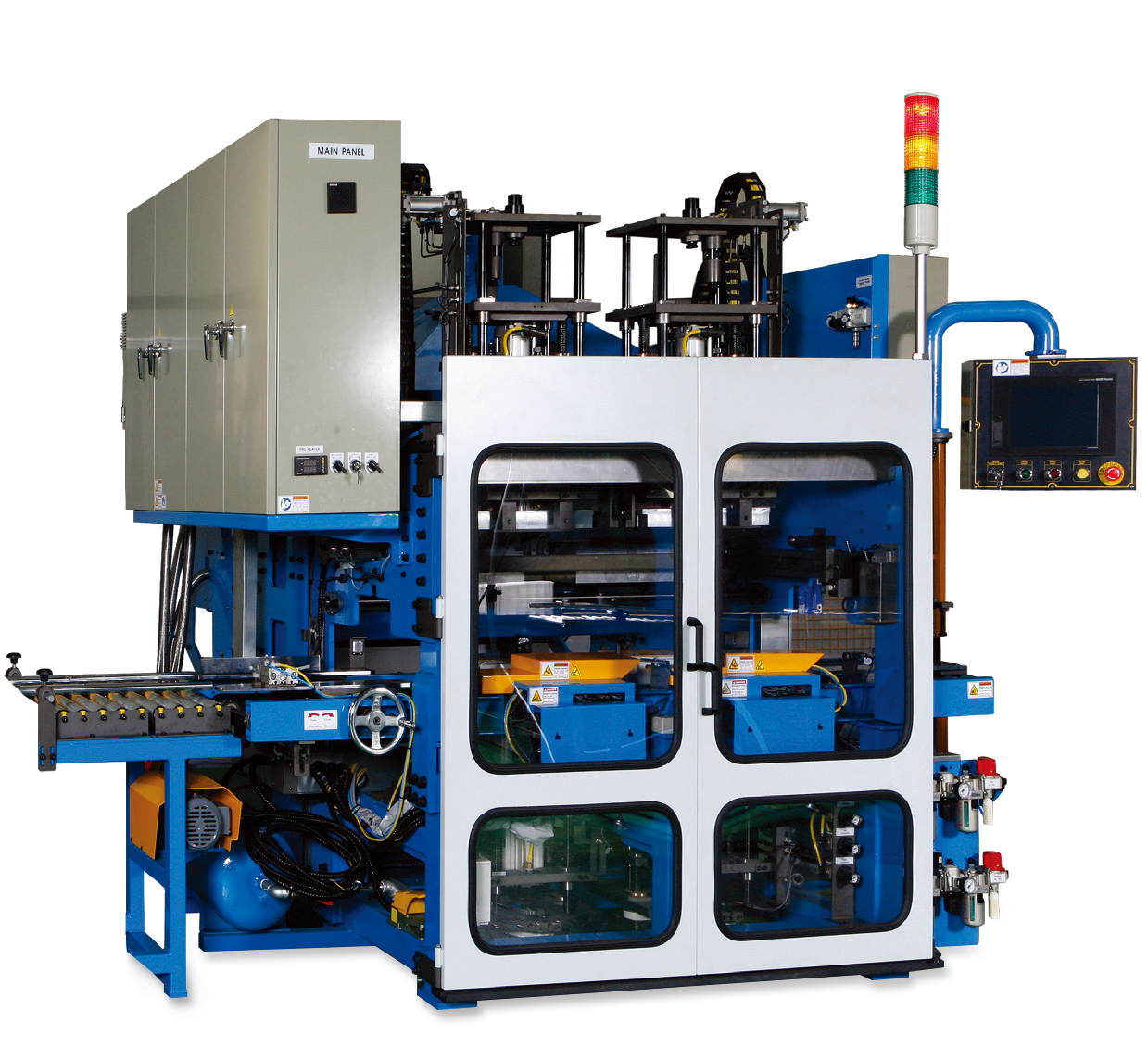

LID SEALING MACHINE

1. General teatures & merit

- Cycle time : Approx. 4.5 Batteries / Min. of LN3 Battery
- Better sealing quality of plastic material by speed control of melting and sealing
- Easy and quick changeover on touch screen
- Linear Motion Guide for precise and soft up/down movement of heating platen
- Precise and quality lid sealing by controlling up-down movement of each 2 head with servo motor control.
- Display panel included for detecting heater cut (Option)
- Included pre-heating and pre-setting heat platen for quick & automatic changeover
- Automatic cover holder changeover system using jig box
- Automatic stop system if out of set temp. range

2. Machine details

- Applicable Battery Size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Air part : SMC
- Heating platen assembly subsidiary part material : SS41
- Platen material : Special AL and Steel
- Main power : 26kW(heating : 25kW, driving : 1kW)
- Control PLC : MITSUBISHI, Touch screen : PROFACE or MITSUBISHI
- Approx. size & weight : L3,100 × W1,800 × H2,350mm / 2,500kg
- Standard accessory : Heating platen 2 sets (for 1 battery type)

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
Compressed air 5 ~ 6kg / ㎠
