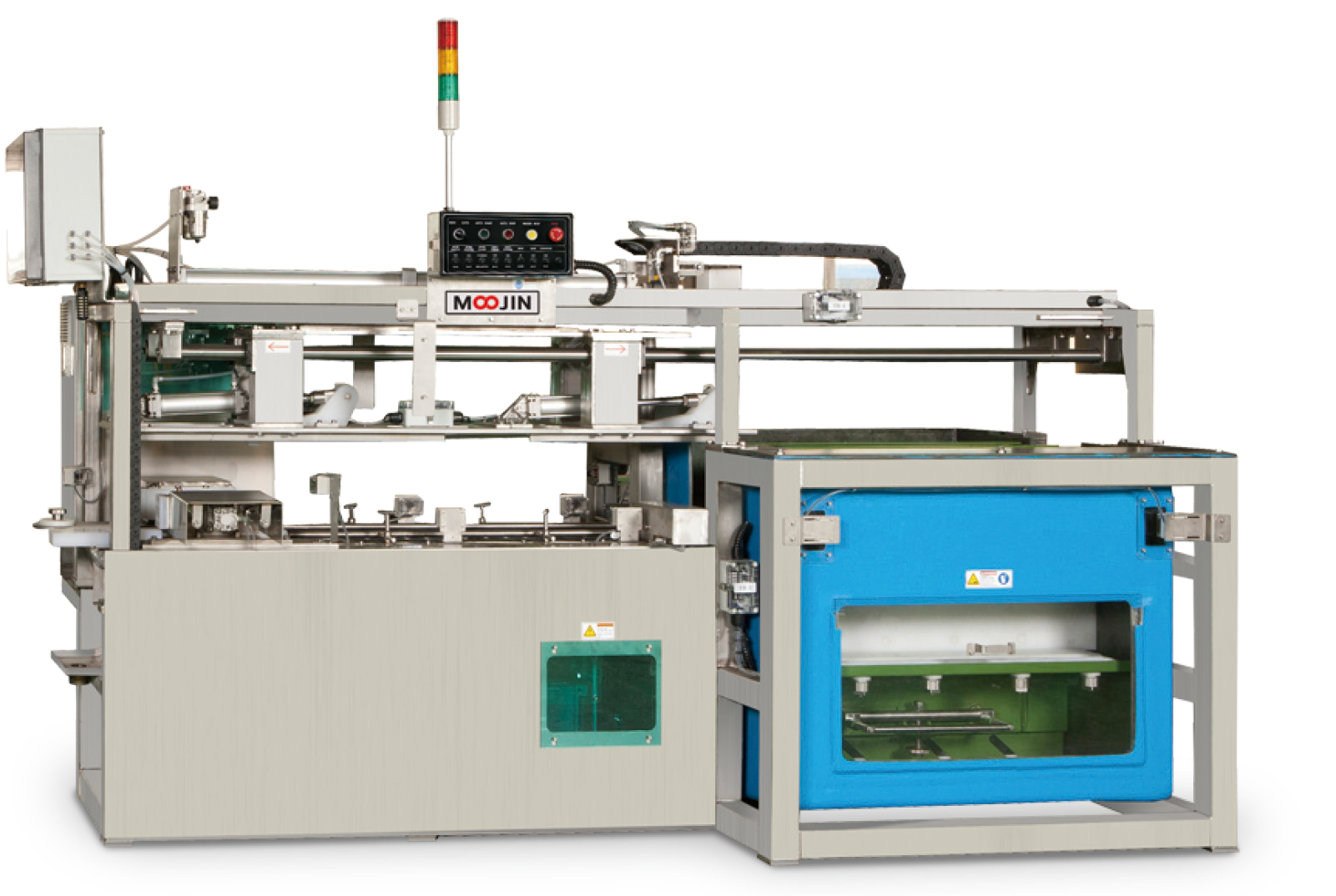

ACID DUMPING MACHINE

MJ Acid dumping machine is composed of very strong acid resistance material. Rotation type dumping machine uses revolving drum which has 4 sections.

1. General teatures & merit

- Applicable battery size and production quantity per each type
  · Container length : 175~ 270 mm - 3 batteries per each cycle
  · Container length : 271~ 410 mm - 2 batteries per each cycle
- Cycle time
  · Container length : 175 ~ 270 mm - about 10 batteries / Min.
  · Container length : 271 ~ 410 mm - about 7 batteries / Min.

2. Machine details

- Frame & cover material : SUS 316L, PVC, PP, F.R.P
- Main power : 1.7kW
- Control PLC : MITSUBISHI (User option)
- Air part : SMC
- Approx. size & weight : L3,500 × W1,800 × H1,800mm / 2,000kg

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
Compressed air 5 ~ 6kg / ㎠
