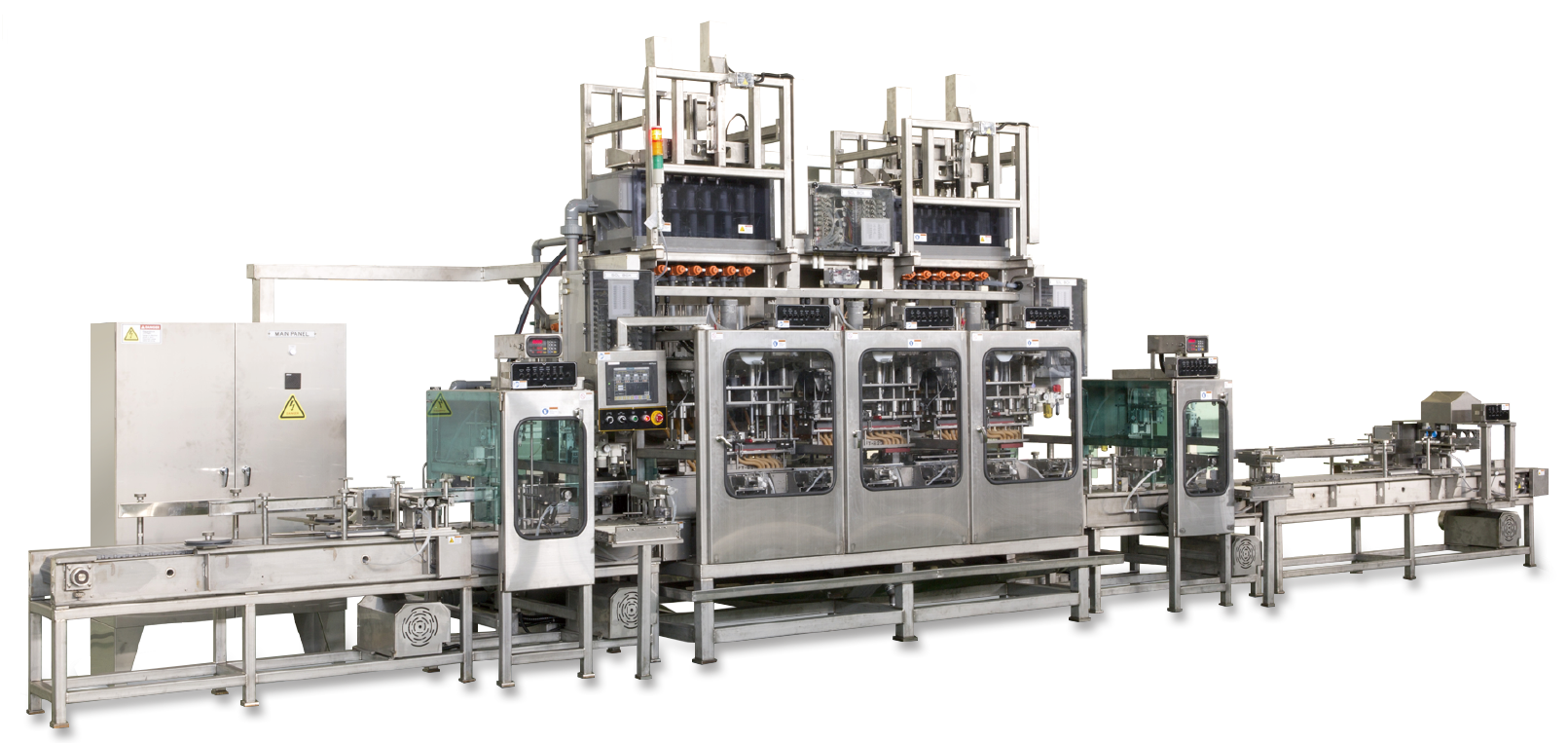

VACUUM ACID FILLING MACHINE FOR VRLA BATTERY

1. General teatures & merit

- Approximate cycle time : 3.5 Batteries / Min. of LN3 Battery
- 2 batteries per cycle
- 1st station for battery weighing machine including rejection conveyor (option)
- 2nd station for 1st vacuum acid filling, 3rd station for acid to be absorbed into plates and AGM separator by vacuum and 4th station for 2nd vacuum acid filling
- 2nd, 3rd and 4th stations are in the same body frame
- 5th station for battery weighing machine including rejection conveyor (option)
- For the vacuum acid filling stations (2nd and 4th stations)
  · Including vacuum pump
  · 12 measuring cups are installed inside the top tank
  · Top tank : Pump up acid to the top tank and then drain acid to keep constant acid level for each acid measuring cup
  · 1 volumetric stick is installed inside of each cup
  · The volumetric sticks are moved and controlled by servo motor.
- Acid filling nozzle of special material for easy maintenance
- Easy adjustment in setting nozzle distance while changeover

2. Machine details

- Applicable battery size : L185 - 410, W125 - 180, H170 - 250 (in mm)
- Changeover time : Approx. 10 Min.
- Conveyor : PVC belt (S400) or rollers
- Air part : SMC

3. Utility

Utility
Standard electrical power 220 / 380 / 440V * 3-phase * 50 / 60Hz (USER OPTION)
Compressed air 5 ~ 6kg / ㎠
